November 17, 2017

Key Specs:

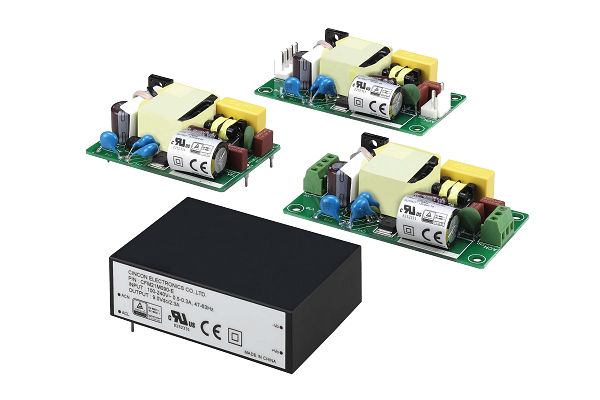

The CFM21M series is our new 20 watt high-density Class II medical AC/DC power supply that provides 20W of regulated power in an 2.38X1.6 inches (60.50x40.50mm) dimension, and very low profile at 0.8 inches (20.32mm). It has safety approvals of UL60601-1/IEC60601-1/EN60601-1 Ed.3.1. It is available in 5 outputs of 5, 9, 12, 15 and 24VDC, and optional versions of PCB mount, Wafer (-T), Encapsulated (-E), and Screw terminal (-S).



Exceptional Performance:

The power supply offers an extraordinary high efficiency of 85%, and a very wide operating temperature range of -25°C to +70°C., While going as high as +60°C at full rating, it covers most of the extreme environments. This power supplies can be used at a high altitude up to 5000m max, and also features a low no load input power consumption less than 0.1W, and leakage current of <100uA.

Key Functions:

CFM21M has a Peak load function at certain conditions (requirements see datasheet for details), it can provide up to 130% of the rated power.

Full Protections:

Output over-voltage, continuous short circuit conditions.
UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 medical safety Approved
2 MOPP
Meet UL62368/IEC62368/EN62368

Applications:

Suitable for medical applications, as well as most industrial equipments.
