July 21, 2017

Key Specs:

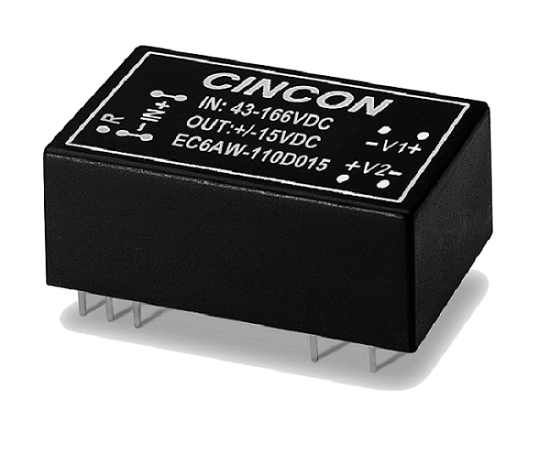

Cincon introduces the new series EC6AW-110S with industry standard DIP-24 dimension 1.25 x 0.80 x 0.5 inches and EC6AW-110S series provide 10W of output power @ single output voltages of 12, 15VDC and dual outputs voltages of ±5, ±12, ±15VDC. It has a wide (4:1) input voltage range of 43 to 160VDC (110VDC nominal) and 3000VDC basic isolation.

Exceptional Performance:

EC6AW-110S is designed to comply with the EN50155 standard (with external filters) and meet shock and vibration requirements. EC6AW-110S is also designed to operate in harsh environments, the potted and encapsulated design provides increased system reliability through added protection from environmental factors such as dust and moisture. Additionally, all models carry CE mark, get UL/cUL 60950-1 approved and meet EN 45545 railway fire & smoke standard. The EC6AW-110S series have a very high efficiency up to 88.5% and allows ambient operating temperature range of –40°C to 85°C (de-rating above 60°C).

Key Functions:

EC6AW-110S series also feature very low no load power consumption (6mA) and make these converters an ideal solution for energy critical systems. Furthermore, the remote on/off (positive or negative) is provided.

Full Protections:

The modules are fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage and continuous short circuit conditions.

Applications:

EC6AW-110S is designed primarily for common railway applications of 72V, 96V, 110V, nominal voltage and also suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications.
