June 16, 2017

Key Specs:

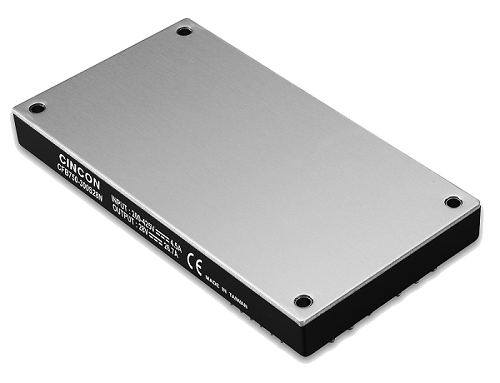

The new series CFB750-300 is an industry standard full-brick DC converter, providing up to 750W of output power @ single output voltages of 12, 15, 24, 28, 36, 48VDC. It has a high input voltage range of 200 to 425VDC (300VDC nominal) and reinforced with a 3000VAC isolation.

Exceptional Performance:

High efficiency up to 90%, allowing case operating temperature range of –40°C to 85°C. An optional heat sink is available to extend the full power range of the unit. Very low no load power consumption (10mA), an ideal solution for energy critical system applications.

Key Functions:

The standard control functions include remote on/off (positive or negative) and 60-110% adjustable output voltage. Parallel operation is also available.

Full Protections:

Input UVLO (under voltage lock out), input over-voltage, output over-current, output over-voltage and over-temperature and continuous short circuit conditions.

Applications:

Suitable for distributed power architectures, telecommunications, servers, base station, battery operated equipment, and industrial applications.
