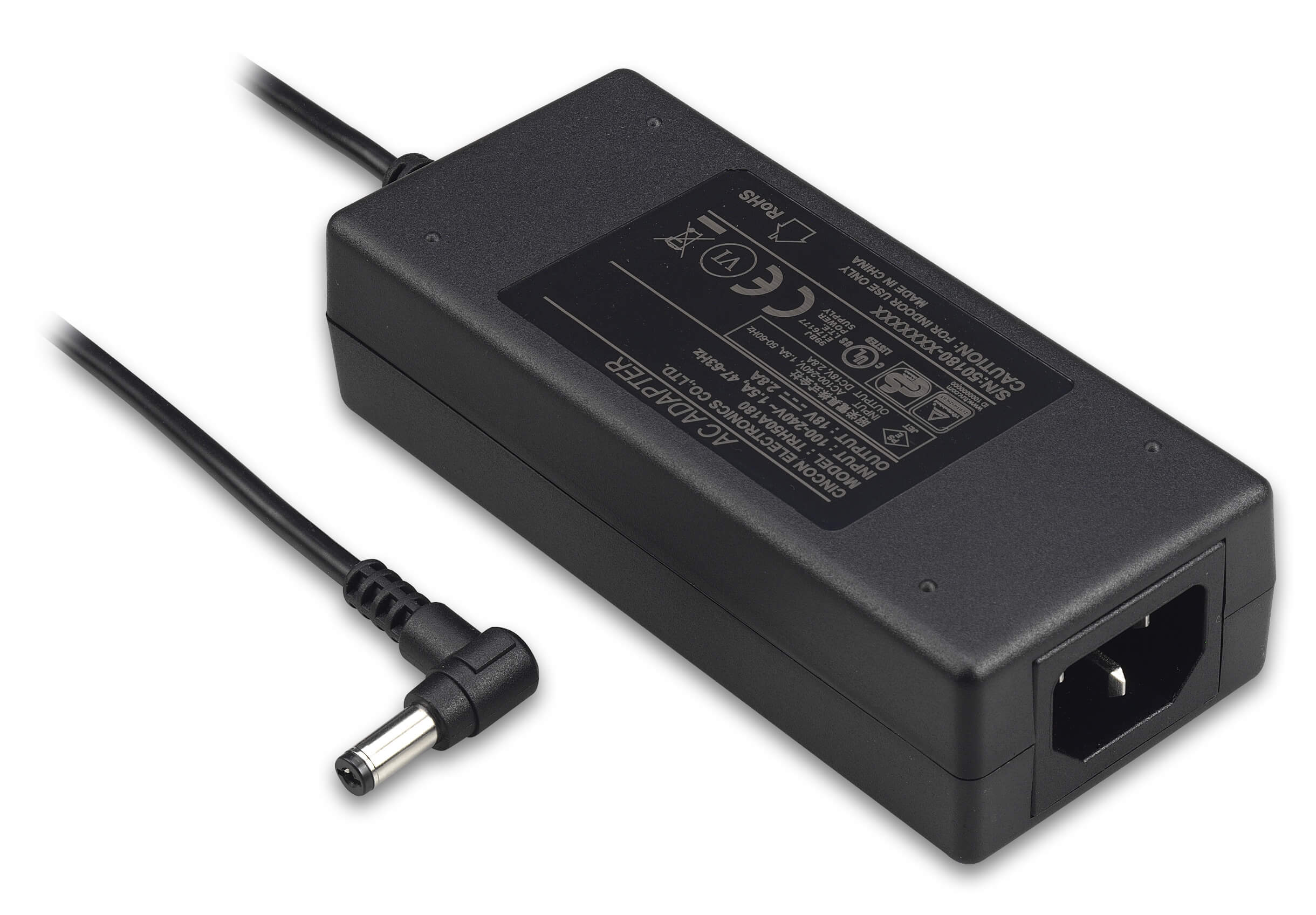

Cincon introduces the enhancement of TRH50A VI series, greener 50-Watt desktop adapters which comply with the up-to-date energy efficiency regulations (CoC Tier 2 & DoE Level VI), with IEC-320/C14 inlet, measuring only 4.724x2.047x1.220 inches (120.00x52.00x31.00 mm).

The TRH50A VI series features a wide universal input voltage range of 90~264 Vac and are available in single output voltages of 12, 15, 18, 19, 24, 28, 36 and 48 Vdc. The adapters offer CB, UL/cUL, GS, CE and PSE safety approvals and meet the radiated and conducted emission requirements for EN55022 Class B and CISPR/FCC Part 15 Class B. The adapter is fully protected against short circuit and over-voltage conditions, and allows operating temperature range of –20°C to 70°C (de-rating above 50°C). Cincon’s world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that the TRH50A VI series power is extremely reliable.
