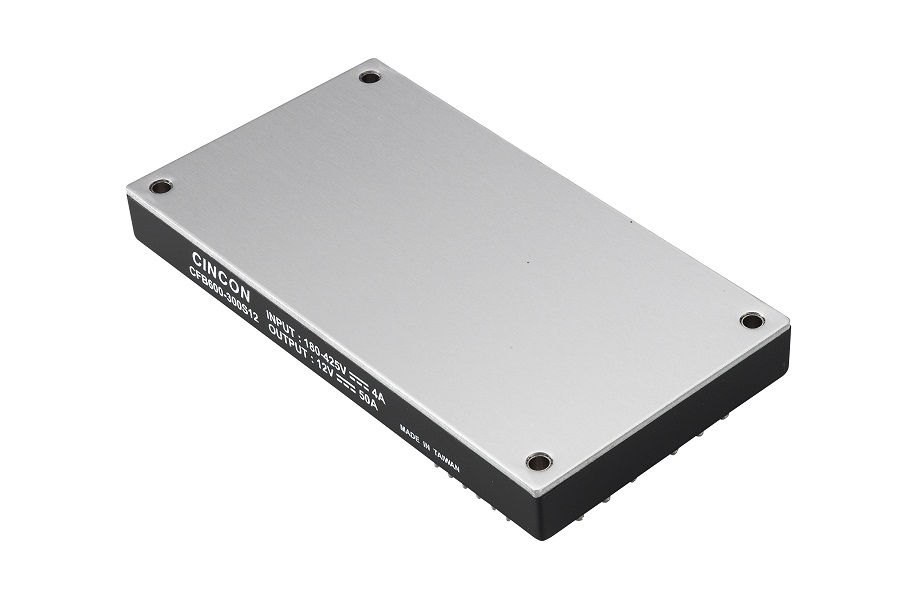

Cincon introduces the new series CFB600-300 with industry standard full-brick dimension 4.6" × 2.4" x 0.5" inches and CFB600-300 series provide up to 600W of output power @ single output voltages of 12, 24, 48VDC. It has a wide input voltage range of 180 to 425VDC (300VDC nominal) and 3000VAC reinforce isolation.

The CFB600-300 series have a very high efficiency up to 91% and allows case operating temperature range of –40°C to 100°C and an optional heat sink is available to extend the full power range of the unit. The modules are fully protected against input UVLO (under voltage lock out), input over-voltage, output over-current, output over-voltage and over-temperature and continuous short circuit conditions. Furthermore, the standard control functions include remote on/off (positive or negative) and 60-110% adjustable output voltage. Parallel operation is also optional.

All models are very suitable for distributed power architectures, telecommunications, data communications, wireless communications, servers, base station, and industrial applications.
