Key Specs:

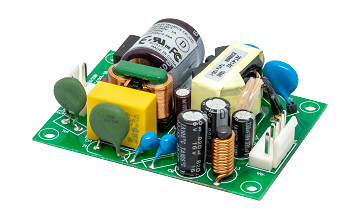

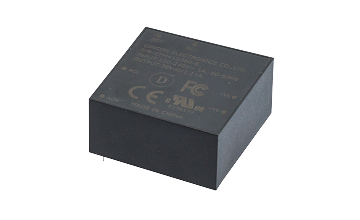

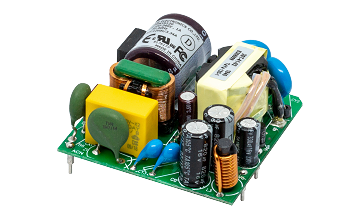

The CFM41S series is our new 40Watt high-density class II AC/DC power supply that provides 40W to 80W(peak load) of regulated power in an 2X2 inches(50.8x50.8mm) dimension, and a very low profile of 0.94 inch (23.9 mm). It has safety approvals for IEC/UL/EN 62368-1, and meets IEC/EN60335-1 for household appliances. It is available in 6 outputs of 5, 12, 15, 24, 36 and 48VDC, and optional versions of PCB mount, Wafer (-T), or Encapsulated(-E).

Exceptional Performance:

The power supply offers an extraordinary high efficiency of up to 90%, and a very wide temperature range of -30°C to +80°C, while operating as high as +50°C at full rating, which covers most of the extreme environments. This power supplies can be used at a high altitude up to 5000m max, and also features a low no load input power consumption less than 0.15W.

Key Functions:

The CFM41S series has a very powerful Peak load function, and at certain conditions (requirements see datasheet for details), it can provide up to 200% of the rated power.

Full Protections:

Output over-voltage, output over-load and continuous short circuit conditions.

Applications:

Suitable for consumer electronics, telecommunication devices, commercial equipments, and light/ heavy industrial applications.
