Cincon releases new AC/DC 4”X2”, 150W – CFM150S series

Share on

Oct

#Product Press Release#AC-DC Power Supply#Industrial / ITE#Household#Baseplate-cooling / Fanless

October 18, 2019

Key Specs:

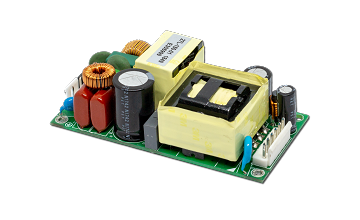

The CFM150S series is our new 150Watt high-density class I & II AC/DC open framed power supply that provides 150W (120W with Natural Convection) of regulated power in an 4X2 inches (101.6x50.8mm) dimension, and a very low profile of 1.28 inch (32.6 mm). It has safety approvals for IEC/UL/EN 62368-1, and meets IEC/EN60335-1 for household appliances.

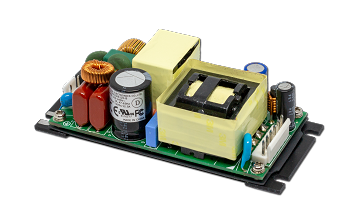

It is available in 5 outputs of 12, 24, 28, 36 and 48VDC, and additional Base-Plate cooling option that offers improved derating and full 150W usage.

Exceptional Performance:

The power supply offers an extraordinary high efficiency of up to 94%, and a very wide temperature range of -30°C to +80°C, and able to start-up at -40°C if the input is @ 100Vac, which covers most of the extreme environments. This power supply can be used at a high altitude up to 5000m max, and also features a low no load input power consumption less than 0.15W.

Full Protections:

Safety approved for EN/UL/IEC 62368-1. EMI safety meets both Class I & II. Meet 2MOPP, and IEC/EN60335-1. Output over-voltage, output over-load and continuous short circuit conditions.

Applications:

Suitable for consumer electronics, telecommunication devices, commercial equipments, and light/heavy industrial applications.
