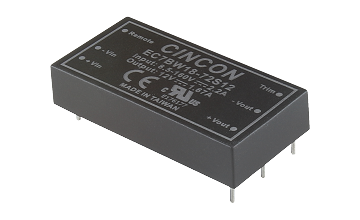

Cincon releases new DC/DC Converter EC7BW18 Series

Share on

Dec

#Product Press Release#DC-DC Converter#Railway#Industrial / ITE#Ultra-wide Input Range

December 6, 2019

Key Specs:

With Cincon continued focus on the development of our DC-DC converter products, we are here to introduce our latest product design the EC7BW18 Series. With a ultra-wide 18:1, 8.5~160Vdc input range, this new product offers 20 watts of output power in a 2”×1”×0.4” size, with output options of 5, 12, 15, ±12, ±15, ±24VDC.

Exceptional Performance:

It has a very low no load power consumption requirement of 5~8 mA. Efficiency can go as high as 90%, allowing case operating temperature range of –40°C to 105°C.

Key Functions:

Other features include remote on/off (positive or negative), and -20~+15% adjustable output voltage. Safety approved for UL62368-1 / IEC62368-1. Compliant with EN50155 (EN61373), EN45545-2, and EN50121-3-2 requirements for the essential railway market needs (need external circuits).

Full Protections:

Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage and over-temperature and continuous short circuit conditions, and offers isolation up to 3000Vac.

Applications:

Although the product was primary design for all common railway applications, it is also suitable for other markets such as industrial, telecommunications, battery operated equipments, and distributed power architectures.
