Cincon releases new AC/DC Medical Adapter – TR18RDM series

Share on

Jan

#Product Press Release#AC-DC Power Supply#Medical#Home Healthcare

January 10, 2020

Key Specs:

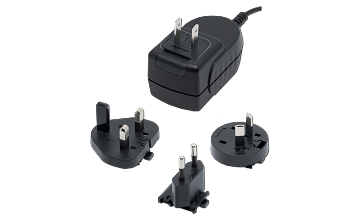

The TR18RDM series is our new 18 watts miniature (80.40x43.00x36.90mm), 2MOPP, wall-mount adapter. With wider than before universal input Range of 80~264VAC. It is IEC/UL 60601 and EN60601-1-11 (Home Healthcare Applications) approved, and meets IEC/EN60335-1. The adapter is available in 6 different outputs of 5, 9, 12, 15, 18, and 24VDC.

Exceptional Performance:

The power supply offers an extraordinarily high efficiency up to 85.45%, and a wide temperature range of -30°C to +70°C. At full power rating, it can go as high as +40°C, which covers most of the extreme environments. Also the power supplies can be used at high altitude up to 5000m max, and very low leakage current of less than 30μA.

Key Functions:

The TR18RDM meets IP22, and the new DoE energy efficiency level VI (US) and CoC Tier 2 requirements in the EU. It also features a low no load input power consumption less than 75 mW.

Full Protections& Safety Approvals:

Fully protected against output over-voltage and continuous short circuit conditions. It also has been approved IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1 2MOPP medical safety. In addition, all models meet EN60601-1-2 Ed4, EN55011 Class B, FCC Part 18 Class B emissions and immunity standards. IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1 Ed.3.1 medical safety approved.

Applications:

The adapter is suitable for a variety of medical applications, such as healthcare, diagnostic and monitoring equipment in the hospital and dental clinic. Furthermore, the design meets EN60335-1 for household appliance, as well as most industrial equipments.
