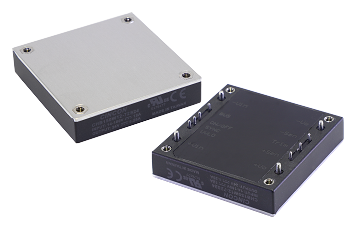

Cincon CHB150W12 Series Half Brick, Ultra-Wide Input DC-DC Converter New Product Release

Share on

Sep

#Product Press Release#DC-DC Converter#Railway#Industrial / ITE#Ultra-wide Input Range

Sep 18, 2020

Key Specs:

With Cincon continued emphasis on the development of Railway and Ultra-Wide input applications, we are here to introduce our latest product design, the DC/DC Converter CHB150W12 Series. With a wide 12:1, 14~160Vdc input range, this new product offers 150 watts in an industry standard half brick size, with single output voltages of 5, 12, 15, 24, 48VDC and 3000Vac isolation.

Exceptional Performance:

Efficiency can go as high as 91%, and has an operating case temperature of -40°C to 100°C.

Key Functions:

Features include a Bus Capacitor Pin for Hold Up Time option, an External Synchronization Function, and remote on/off (positive or negative) and -20~+15% adjustable output voltage.

Also, Safety meets UL/IEC62368-1, EN50155 (with eternal circuits), and EN45545-2 requirements for the essential railway market needs.

Full Protections:

Fully protected with input UVLO (under voltage lock out), output over-current/voltage, over-temperature, and continuous short circuit conditions.

Applications:

Although the product was primary design for all common railway applications, it is also suitable for other markets such as industrial, telecommunications, battery operated equipments, and distributed power architectures.
