Cincon CFM130S series AC-DC 2”X3” 130W New Product Release

Share on

Aug

#Product Press Release#AC-DC Power Supply#Industrial / ITE#Household#Baseplate-cooling / Fanless

Aug 07, 2020

Key Specs:

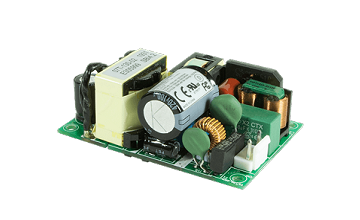

The CFM130S series is our new 130 Watts high-density class I & II AC/DC open framed power supply that provides 130W (100W with Natural Convection) of regulated power in an 2”X3” inches (50.8x76.2mm) dimension, and a very low profile of 1.20 inch (30.5 mm). It has safety approvals for IEC/UL/EN 62368-1, and meets IEC/EN60335-1 for household appliances.

It is available in 4 outputs of 12, 24, 36 and 48VDC, with additional Base-Plate option, and another protective case option.

Exceptional Performance:

The power supply offers an extraordinarily high efficiency of up to 94%, and a very wide temperature range of -30°C to +70°C, which covers most of the extreme environments. This power supply can be used at a high altitude up to 5000m max, and also features a low no load input power consumption less than 150mW, as well as a very low leakage current of 100μA.

Full Protections:

Safety approved for EN/UL/IEC 62368-1.

EMI safety meets both Class I & II. Meet 2MOPP, and IEC/EN60335-1.

Output over-voltage, and continuous short circuit protections.

Applications:

Suitable for consumer electronics, telecommunication devices, commercial equipment, light/heavy industrial, and household appliance applications.
