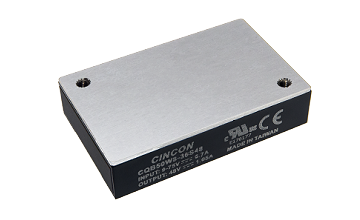

Cincon CQB50W8 series 50W Ultra-Wide Input Quarter Brick DC-DC Converter New Product Release

Share on

Sep

#Product Press Release#DC-DC Converter#Railway#Industrial / ITE#Ultra-wide Input Range

Sep 4, 2020

Key Specs:

With Cincon continued emphasis on the development of Railway and Ultra-Wide input applications, we are here to introduce our latest product design, the DC/DC Converter CQB50W8 Series. With a wide 8:1, 9~75Vdc input range, this new product offers 50 watts in an industry standard quarter brick size, with single output voltages of 12, 15, 24, 28, 48VDC and 3000Vac isolation.

Exceptional Performance:

It has a very low no load power consumption requirement of 8mA. Efficiency can go as high as 91%, and has a case operating temperature of - 40°C to 105°C.

Key Functions:

Other features include remote on/off (positive or negative) and -20~+15% adjustable output voltage.

Also, Safety meets UL62368-1 (Reinforced Insulation), EN50155 (with eternal circuits), and EN45545-2 requirements for the essential railway market needs.

Full Protections:

Fully protected with input UVLO (under voltage lock out), output over-current/voltage, over-temperature and continuous short circuit conditions.

Applications:

Although the product was primary design for railway applications, it is also suitable for other markets such as industrial, telecommunications, battery operated equipment, and distributed power architectures.
