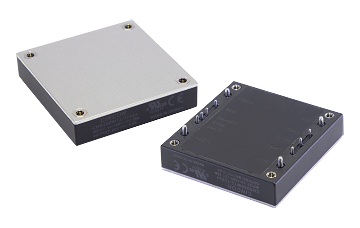

Cincon CHB200W12 Series Half Brick, Ultra-Wide 12:1 Input DC-DC Converter New Product Release

Share on

Sep

#Product Press Release#DC-DC Converter#Railway#Industrial / ITE#Ultra-wide Input Range

Sep 25, 2020

Key Specs:

With Cincon continued emphasis on the development of Ultra-Wide input and Railway applications, we are here to introduce our latest product design, the DC/DC Converter CHB200W12 Series. With a wide 12:1, 14~160Vdc input range, this new product offers 200 watts in an industry standard half brick size, with single output voltages of 12, 15, 24, 48VDC and 3000Vac isolation.

Exceptional Performance:

Efficiency can go as high as 90%, and has an operating case temperature of -40°C to 100°C.

Key Functions:

Features include a Bus Capacitor Pin for Hold Up Time option, an External Synchronization Function, and remote on/off (positive or negative) and -20~+15% adjustable output voltage.

Also, Safety meets UL/IEC62368-1, EN50155 (with external circuits), and EN45545-2 requirements for the essential railway market needs.

Full Protections:

Fully protected with input UVLO (under voltage lock out), output over-current/voltage, over-temperature, and continuous short circuit conditions.

Applications:

Although the product was primary design for all common railway applications, it is also suitable for other markets such as industrial, telecommunications, battery operated equipment, and distributed power architectures.
