2020 AC-DC Featured Power Supplies
08
Oct
Oct 08, 2020
Cincon Unique Featured Power Supplies:
In recent years, Cincon has developed a new generation of featured power supplies for specific topics. They could be categorized into the following categories:
1. IOT Power Supply:
- High power density and small size which are suitable for IOT devices
- Class II
2. Home Health Care Power Adapter
- Wider universal input: 80~264Vac
- EN 60601-1-11 safety approval, IP21 tested and meet 2MOPP
- Interchangeable plugs for wall-mount type
- Compact size
- Class II
3. Peak Load Power Supply
- 2 times peak load of the rated output power
- Multiple product packages
- High efficiency & compact size
- Class II
4. Baseplate-cooled Power Supply
- Fanless solution
- ITE or Medical safety approvals with IEC, UL, EN
- Cover option available
- High efficiency & compact size
5. Brick Power Supply
- Fanless solution
- Built-in EMI solution no need extra and external components for EMI
- Low profile
Power Range 6W-300W & Various Package Type for You to Choose:
In Cincon power solution, the new generation AC-DC power supplies offer the output power range from 6W~300W with different types which are:
1. On-board Type
2. Connector Type
3. Encapsulated Type
4. Enclosed Type
5. Baseplate-cooled Type
6. Brick Type
7. Wall-mount Type
8. Desk-top Type
Product Lines:
Class II

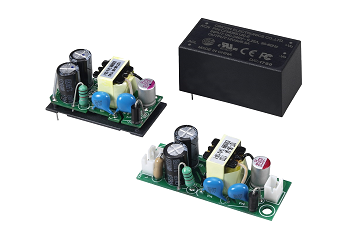

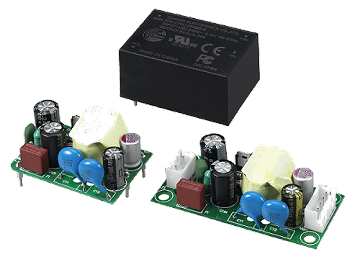

CFM06S: 6W AC-DC Industrial Power Supply
6W,
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options

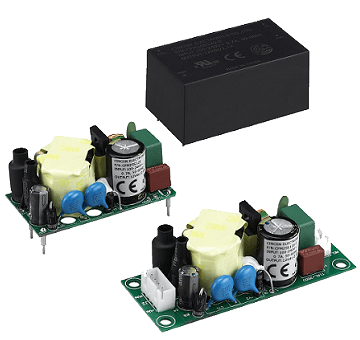

CFM12S: 12W AC-DC Industrial Power Supply
12W,
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options
Home Healthcare Power Adapter:
Class II

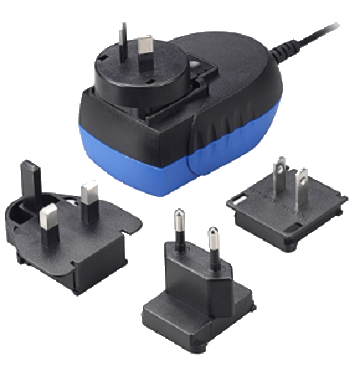

TR18RDM: 18W AC-DC Medical Power Supply
18W, Wall-mount type
80~264 Vac Input
IEC/EN/UL 60601-1
EN60601-1-11 Home Healthcare Application
2MOPP
Interchangeable AC Plugs

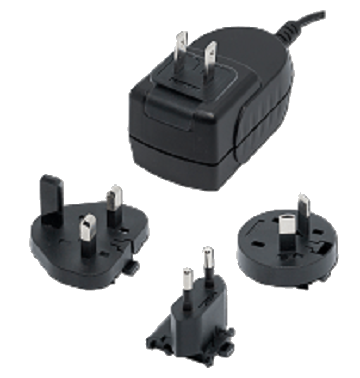

TR30RDM: 30W AC-DC Medical Power Supply
30W, Wall-mount type
80~264 Vac Input
IEC/EN/UL 60601-1
EN60601-1-11 Home Healthcare Application
2MOPP
Interchangeable AC Plugs
TR36M: 36W AC-DC Medical Power Supply
36W, Desktop type
80~264 Vac Input
IEC/EN/UL 60601-1
EN60601-1-11 Home Healthcare Application
2MOPP
Peak Load Power Supply:
Class II

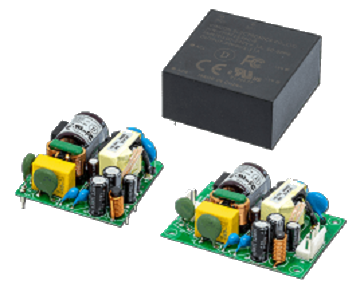

CFM25S: 25W AC-DC Industrial Power Supply
25W, 2”x1.1” Size
2 Times Peak Load
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options

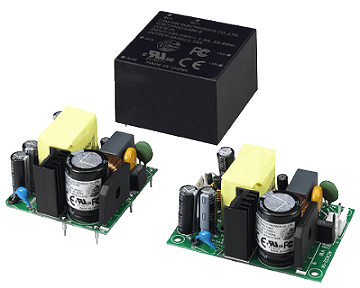

CFM41S: 40W AC-DC Industrial Power Supply
40W, 2”x2” Size
2 Times Peak Load
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options

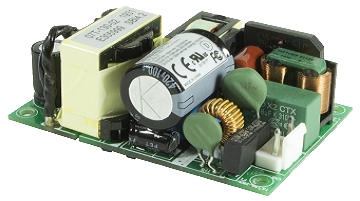

CFM61S: 60W AC-DC Industrial Power Supply
60W, 2”x2” Size
2 Times Peak Load
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options
Class I & Class II

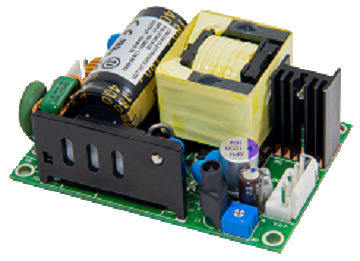

CFM81S: 80W AC-DC Industrial Power Supply
80W, 2”x3” Size
2 Times Peak Load
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
2 Package Options
Baseplate-Cooled Power Supplies:
Class I & Class II

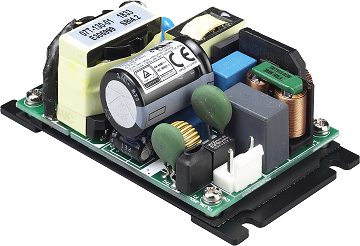

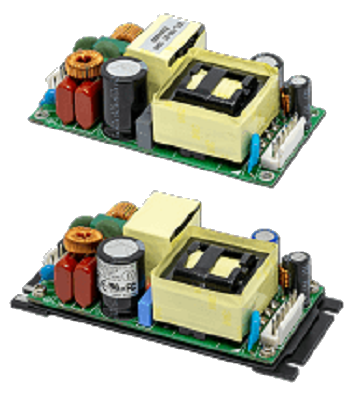

CFM130S: 130W AC-DC Industrial Power Supply
130W, 2”x3” Compact Size
80~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
3 Package Options
CFM130M: 130W AC-DC Medical Power Supply
130W, 2”x3” Compact Size
80~264 Vac Input
IEC/EN/UL 60601-1
2MOPP
3 Package Options

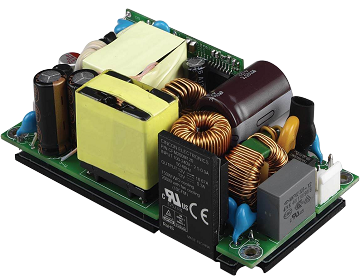

CFM150S: 150W AC-DC Industrial Power Supply
150W, 2”x4” Compact Size
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
2 Package Options
CFM200M: 200W AC-DC Medical Power Supply
200W, 2”x4” Compact Size
90~264 Vac Input
IEC/EN/UL 60601-1
2MOPP
2 Package Options
Class I

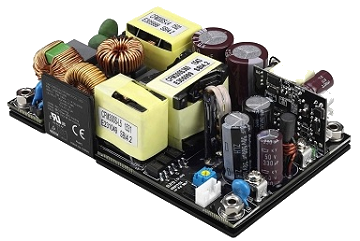

CFM300S: 300W AC-DC Industrial Power Supply
300W, 3”x5” Compact Size
90~264 Vac Input
IEC/EN/UL 62368-1
Operating Altitude 5000 meters
2 Package Options

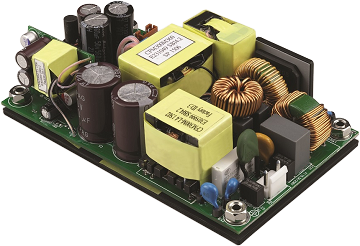

CFM300M: 300W AC-DC Medical Power Supply
300W, 3”x5” Compact Size
90~264 Vac Input
IEC/EN/UL 60601-1
2MOPP
2 Package Options
Brick Type Power Supply:
Class I

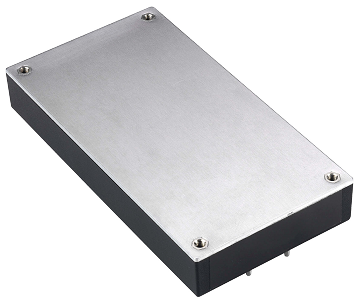

CBM100S: 100W AC-DC Industrial Power Supply
100W, Full Brick Size
80~264 Vac Input
Low Profile
Wide Operating Temperature
Built-in EMI Filter & Capacitor
