Cincon CFM260S Series AC-DC 2”X4”, 260W New Product Release

Share on

Nov

#Product Press Release#AC-DC Power Supply#Industrial / ITE#Household#Baseplate-cooling / Fanless

Nov 20, 2020

Key Specs:

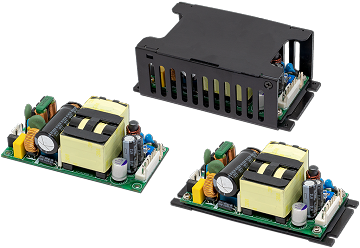

The CFM260S series is our new 260W high-density class I AC/DC open frame power supply that provides 260W (220W with Natural Convection) of regulated power in an 2X4 inches (50.8x101.6mm) dimension, and a low profile of 1.4 inch (36.6 mm). It has safety approvals for IEC/UL/EN 62368-1, and meets IEC/EN60335-1 for household appliances.

With universal input of 85~264Vac, it comes in 4 outputs of 12, 24, 36 and 48VDC, and additional baseplate-cooling option that offers improved derating and full 260W usage.

Exceptional Performance:

The power supply offers an exceptional high efficiency of up to 93.5%, and a very wide temperature range of -30°C to +80°C, which covers most of the extreme environments. This power supply can be used at a high altitude up to 5000m max, and features a low no load input power consumption less than 0.2W.

Full protections:

Safety approved for EN/UL/IEC 62368-1.

Output over-voltage and continuous short circuit protection, over temperature protection.

Applications:

Suitable for consumer electronics, telecommunication devices, commercial equipment, and light/heavy industrial applications.
