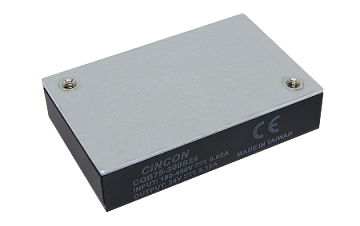

Cincon CQB75-300S Series, High Input Voltage DC-DC Converter New Product Release

Share on

Dec

#Product Press Release#DC-DC Converter#Industrial / ITE#High Input Voltage

Dec 4, 2020

Key Specs:

We are here to introduce our latest product design, the DC-DC converter CQB75-300S Series. With high input range of 180~425Vdc (300V nominal), this new DC-DC converter that offers 75 watts of output power @ single output voltages of 5, 12, 15, 24, and 48VDC and 3000VAC reinforced isolation.

Exceptional Performance:

It has a very low no load power consumption requirement of 10mA. Efficiency can go as high as 90%, and has a case operating temperature of - 40°C to 105°C.

Key Functions:

The standard control functions include remote on/off (positive or negative). They have adjustable output voltage range of -20~+10% for the 5V version, and ±20% for other outputs. Also, it meets UL 62368-1 (Reinforced Insulation) for DC Modules.

Full protections:

Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage and over-temperature and continuous short circuit protection.

Applications:

This product is designed primarily for common applications of 300V nominal voltage, suitable for distributed power architectures, servers, base stations, telecommunications, battery operated equipment and industrial applications.
