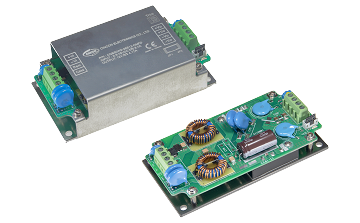

Cincon CQB50W8-CMFC(D) DC-DC CHASSIS MOUNT Series New Product Release

Share on

Jan

#Product Press Release#DC-DC Converter#Railway#Industrial / ITE#Ultra-wide Input Range

Jan 29, 2021

Key Specs:

With Cincon on-going development of Railway application market, we are here to introduce our new product design, the DC/DC CHASSIS MOUNT CQB50W8-CMFC(D) Series. With a wide 8:1, 9.5~75Vdc input range, this new product is a chassis mountable DC-DC converter that offers 50 watts of output power @ single output voltages of 12, 15, 24, 28, 48VDC and 3000Vac isolation (input to output).

Exceptional performance:

It has a very low no load power consumption requirement of 10~12mA. Efficiency can go as high as 90%, and has a case operating temperature of - 40°C to 105°C.

Key Functions:

Other features include remote on/off (positive or negative) and -20~+15% adjustable output voltage.

The chassis structure offers built-in EMI EN50155, EN50121-3-2 filter, and meet EN45545-2 requirements for the essential railway market needs. Also, it meets UL62368-1 & IEC62368-1 safety.

Full Protections:

Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage, over-temperature and continuous short circuit conditions.

Applications:

Although the product was primary design for all common railway applications, it is also suitable for other markets such as industrial, telecommunications, battery operated equipments, and distributed power architectures.
