Cincon releases new AC/DC 3”X5”, 500W Open Frame Power Supply– CFM500S series

Share on

Feb

#Product Press Release#AC-DC Power Supply#Industrial / ITE#Baseplate-cooling / Fanless

Feb 19, 2021

Key Specs:

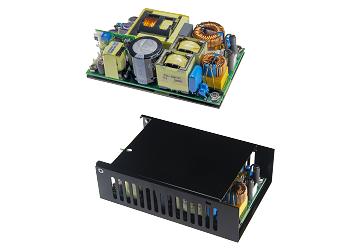

The CFM500S series is our new 500W high-density class I AC/DC open frame power supply with baseplate cooling design that provides 500W of regulated power in a 3X5 inches (127.00x76.20x39.10mm) dimension. It has safety approvals for IEC/UL/EN 62368-1, and meets IEC/EN60335-1 for household appliances.

With wider than before input range of 80~264Vac, it comes in 5 outputs of 12, 18, 24, 36 and 48VDC, and additional cover/case option.

Exceptional performance:

The power supply offers an exceptional high efficiency of up to 94.5%, and a very wide temperature range of -40°C to +85°C, which covers most of the extreme environments. This power supply can be used at a high altitude up to 5000m max, and features a low no load input power consumption less than 0.5W.

Key Functions:

The CFM500M features a low no load input power consumption less than 0.5W. Other features include PS On/Off Remote Control, and Power Good & Power Fail Signal.

Full Protections:

Safety approved for EN/UL/IEC 62368-1, and meets IEC/EN60335-1.

Output over-voltage and continuous short circuit conditions, over Temperature Protection.

Applications:

Suitable for consumer electronics, telecommunication devices, commercial equipment, and light/heavy industrial applications.
