Cincon releases Quarter Brick, DC/DC Converter CQB200 Series

Share on

Feb

#Product Press Release#DC-DC Converter#Industrial / ITE

Feb 26, 2021

Key Specs:

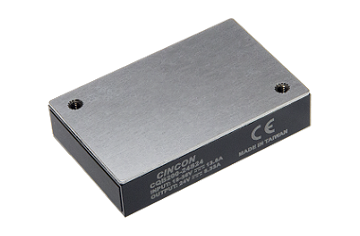

Cincon is here to introduce our latest product design, the DC/DC Converter CQB200 Series. This new product offers 200 watts in an industry standard quarter brick size, with 1:2 input range, and has single output voltages of 24 & 28VDC with 2250Vdc isolation.

Exceptional performance:

It has a very low no load power consumption requirement of 10mA. Efficiency can go as high as 92%, and has a case operating temperature of - 40°C to 105°C.

Key Functions:

Other features include remote on/off (positive or negative) and ±10% adjustable output voltage.

Also, Safety meets UL62368-1 2nd (Functional Insulation), and EN45545-2 requirements for the essential market needs.

Full Protections:

Fully protected with input UVLO (under voltage lock out), output over-current/voltage, over-temperature and continuous short circuit conditions.

Applications:

The product is suitable for industrial, telecommunications, battery operated equipments, and distributed power architectures.
