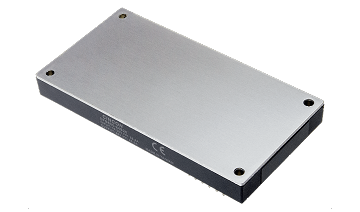

Cincon releases Full Brick, DC/DC Converter CFB800 Series

Share on

Jul

#Product Press Release#DC-DC Converter#Industrial / ITE

Jul 9, 2021

Key Specs:

Cincon is here to introduce our latest product design, the DC/DC Converter CFB800 Series. This new product offers 800 watts in an industry standard full brick size, with 2:1 input range, and has single output voltages of 28VDC with 1500Vdc isolation.

Exceptional performance:

Efficiency can go as high as 90%, and has a case operating temperature of -40°C to 100°C.

Key Functions:

Other features include remote on/off (positive or negative) and -40%~+10% adjustable output voltage. Parallel operation is also available and the recommended quantity for parallel connection would be 10 pcs of CFB800.　

Full Protections:

Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage, over-temperature, and continuous short circuit protection.

Applications:

The product is suitable for telecommunications, data communications, wireless communications, servers, and base station, etc.
　
