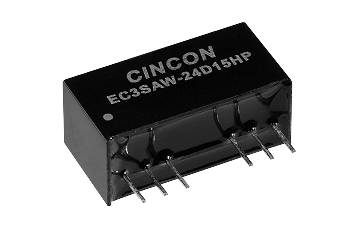

Cincon Releases New 3 Watts, 3KV High Isolation Regulated DC-DC Converter EC3SAWH Series

Share on

Sep

#Product Press Release#DC-DC Converter#Industrial / ITE

Sep 17, 2021

Key specs:

Cincon is delighted to announce our latest product, the DC/DC converter EC3SAWH series. This product offers 3 watts in an industrial standard SIP-8 package. With 9 to 36 VDC and 18 to 74 VDC input voltage (4:1 input range), the series offers output voltage of 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, ±5 VDC, ±12 VDC, and ±15 VDC.

Exceptional Performance:

Efficiency up to 84.5% allows a case operating temperature range of -40°C to 85°C.

Key Functions:

The series is equipped with a positive remote on/off control.

Full protections:

The protections include over current protection, continuous short circuit protection, input under voltage protection, and 3000 VDC I/O isolation. In addition, safety meets IEC/EN/UL 62368-1.

Applications:

The series is suitable for distributed power architectures, telecommunications, battery operated equipment, and industrial applications.
