Cincon TR220M Series 220W AC/DC Medical Adapter New Product Release

Share on

Oct

#Product Press Release#AC-DC Power Supply#Medical#Home Healthcare

Oct 13, 2021

Key specs:

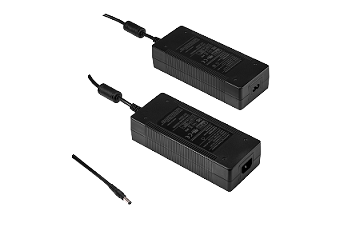

The TR220M series with the compact size of 180 x 75 x 44.5mm is Cincon’s new 2 MOPP desktop adapter which is the smallest 220 watts adapter in the market. It has both Class I (TR220MA) and Class II (TR220MB) options. It supports the universal input range of 80 to 264 VAC and is available with 5 different outputs of 12, 24, 36, 48, and 56 VDC. The series is approved by IEC/EN/UL 60601-1 2 MOPP and IEC/EN 60601-1-11 (TR220MB).

Exceptional Performance:

The power adapter provides exceptional efficiency up to 94% and a wide operating temperature range of -30°C to 70°C. At full power rating, it can go as high as 40°C to cover the normal working environments. Besides, this adapter has very low leakage current less than 100μA and can be operated at an altitude of up to 5000m.

Key Functions:

The TR220M is certified by IP22 standard and meets the new DOE energy efficiency level VI (US) as well as CoC Tier 2 requirements in the EU. Also, it features a low no load input power consumption less than 150 mW.

Full protections & Safety Approvals:

The adapter series is fully protected against output over-current, output over-voltage, input under-voltage, and continuous short circuit conditions. As for the medical safety standard, the series has been approved IEC 60601-1, EN 60601-1, ANSI/AAMI ES 60601-1 2 MOPP, and IEC/EN 60101-1-11 (TR220 MB). Plus, all models are compliant with EN 60601-1-2 Ed4, EN 55011 Class B, FCC Part 15 Class B emissions and immunity standards.

Applications:

The adapter is very suitable for a variety of medical applications, including workstation, monitor, ventilator, hemodialysis, dental oral irrigator devices. The design also meets EN 60335-1 for household appliance and industrial equipment.
