Cincon TRH220A Series - 220W Compact Size AC-DC Adapter New Product Release

Share on

Apr

#Product Press Release#AC-DC Power Supply#Industrial / ITE

Apr 29, 2022

Key specs:

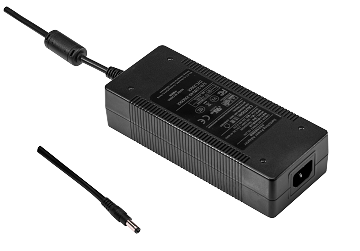

The TRH220A series with the compact size of 180 x 75 x 44.5mm is Cincon’s new Class I desktop adapter which is the smallest 220 watts adapter on the market. This series also supports the universal input range of 90 to 264 VAC and is available with 5 different outputs of 12, 24, 36, 48, and 56 VDC.

Exceptional Performance:

The power adapter provides exceptional efficiency up to 94% and a wide operating temperature range of -30°C to 70°C. At full power rating, it can go as high as 40°C to cover the normal working environments. Besides, this power adapter has very low leakage current with the maximum of 0.75mA and can be operated at the altitude of up to 5000m.

More Key Features:

The TRH220A meets the new DOE energy efficiency level VI (US) as well as CoC Tier 2 requirements in the EU. Also, it features a low no load input power consumption less than 150mW. In addition, this series has the longer hold-up time of 22ms (typ.).

Full Protections & Safety Approvals:

The adapter series is fully protected against input under-voltage, output over-voltage and continuous short circuit conditions. As for the Industrial/ITE safety standard, the series has approvals of IEC/EN/UL 62368-1. Plus, all models are compliant with EN55032 and CISPR/FCC Class B EMC standards.

Applications:

The desktop power adapter is very suitable for a variety of industrial/ITE applications including industrial equipment, office equipment, 5G telecom, network, POE devices and test & measurement instruments.
